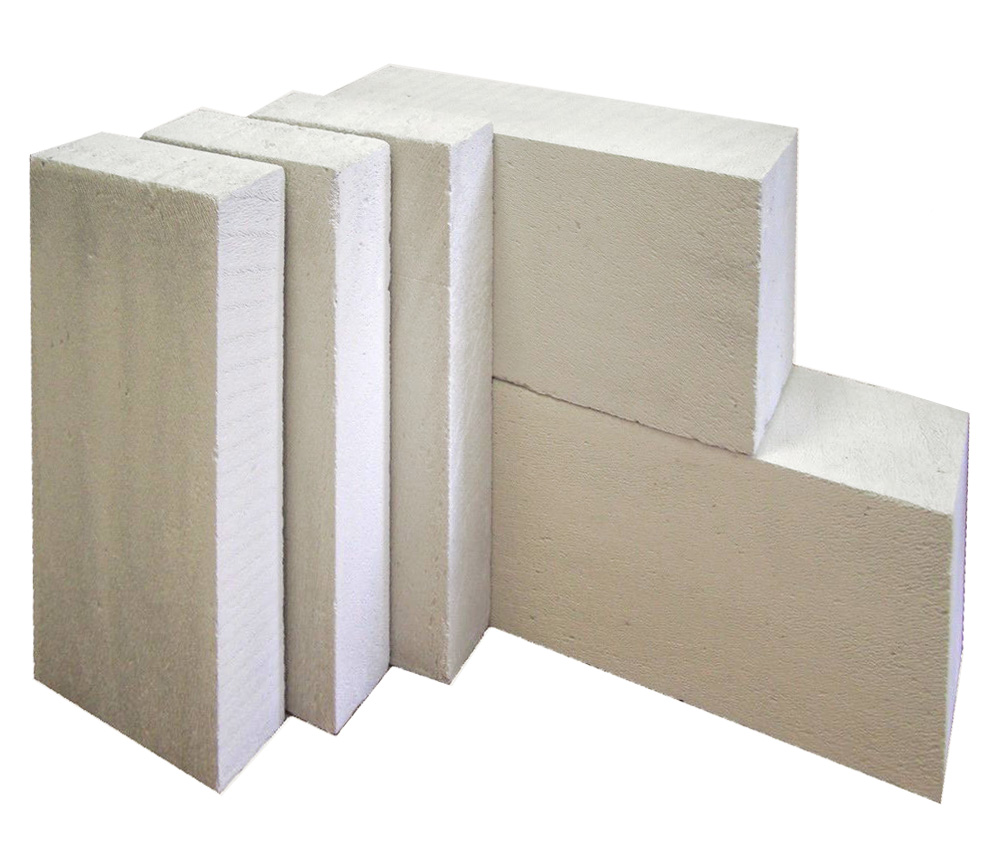

Block insulants

Advantages of block insulants

  • Block insulant has a low thermal conductivity;
  • Block insulant is not flammable;
  • Block insulant a vapor;
  • Block insulant is not picking up the moisture;
  • Block insulant lightweight, but strong enough;
  • Block insulant eco-friendly, not afraid of attack of rodents and insects, durable;
  • Is possible to manufacture thermal panels under the specified dimensions of the customer;

Installation of block insulants made of foam glass

There are several options for installation of insulation:

  1. Mounting on metal profile;
  2. Installation on the glue. Plates are glued onto the prepared wall with a special solution. Contact reliability of plate insulation with the protected surface is achieved by using a special adhesive, developed by our company. The adhesive composition provides fast and reliable installation of plate heat insulation, lack of thermal bridges and the possibility of its use in almost any climatic conditions;

Insulation boards without facings

Plate size,mm Volume m3 plates Area of plates m2 Weight of plates Packaging Number of plates on a pallet
600x300x50 0,009 0,18 2,45 Euro-pallet 192
600x300x100 0,018 0,18 4,86 Euro-pallet 96
600x300x150 0,027 0,18 7,29 Euro-pallet 64
600x300x100 0,018 0,18 4,86 Euro-pallet 96
600x300x150 0,027 0,18 7,29 Euro-pallet 64
800x600x100 0,048 0,48 12,96 Euro-pallet 36

Technical characteristics

Name Value
Thermal conductivity, W / (m * K) 0,08
Group of flammability NF  no fuel
Density, kg / m3 250 – 300
Moisture absorption max 3%
Strength, MPa 1,5 – 2,5
Frost resistance F 100
